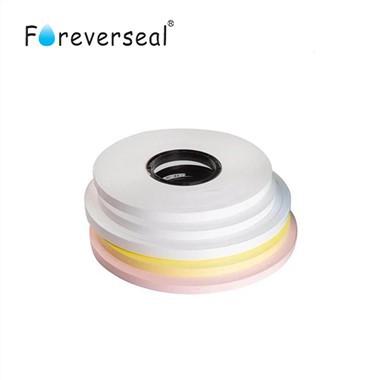

Unsintered PTFE Wrapping Zaj duab xis
PTFE (Polytetrafluorethylene)
Nthuav, ntuj lossis xim
Thickness: 0.254 hli
Dav: 8mm
Txheem ceev: 1.60g / cm3
Hauj lwm lawm
Unsintered PTFE Wrapping Film feem ntau tau teev tseg rau kev thov lossis kev ua haujlwm siab. Lawv cov kev tsim khoom yog qhwv cov zaj duab xis nyob ib ncig ntawm lub cable ua raws li cov txheej txheem uas cov txheej txheem ntawm cov yeeb yaj kiab tau sib xyaw ua ke los tsim cov phab ntsa ruaj khov. Vim tias nws daim ntawv thov siv sijhawm ntau dua thiab kev saib xyuas ntau dua li extrusion, nws feem ntau kim dua. Unsintered PTFE Wrapping Film, txawm li cas los xij, muaj ntau nyob rau hauv cov cables uas yuav tsum tau ua nyob rau hauv ib puag ncig nyuaj.
- Khoom siv
● PTFE (Polytetrafluorethylene)
● Nthuav, ntuj lossis xim
● Thickness: 0.254mm
● Dav: 8mm
● Txheem ceev: 1.60g / cm3
- Nta & Daim Ntawv Thov
● Siab dielectric zog
● Kub kub thiab tshuaj tiv thaiv
● Flammability resistivity
● Tight thickness kam rau ua
● Muaj ntau yam xim rau cov tsho sab nrauv hauv cov cables lossis rau kev txheeb xyuas cov xov hlau tseem ceeb.
- Rau siv hauv
● Hlau thiab cable rwb thaiv tsev rau huab cua chemical thiab thermal ib puag ncig
● Cov hlua khi hlua khi hauv kev tsim cov kab thiab cov hlua hlau
● Cov khoom siv dielectric hauv coaxial cables
● Lub dav hlau thiab kev ua haujlwm siab xaim thiab cable
● Cov khoom siv kho mob / cov khoom siv cabling daws teeb meem
● Mechanical zog hloov
● Kev hloov tshuaj lom neeg
● Kev lag luam hluav taws xob thiab hluav taws xob
● Thiab ntau dua
- Technical Data
|
Thickness |
0.0100" |
|
(0.254 hli) |
|
|
Ua siab ntev |
±0.00040" |
|
± 0.01 hli |
|
|
Dav |
8mm ib |
|
Qhov ntom |
1.6g / cm3 |
|
Tensile zog (yam tsawg kawg nkaus) |
10 MPa |
| Elongation (tsawg kawg) |
50 feem pua |
|
Joint Free Lengths |
> 200m |
- Peb daim ntawv pov thawj
- Khoom siv

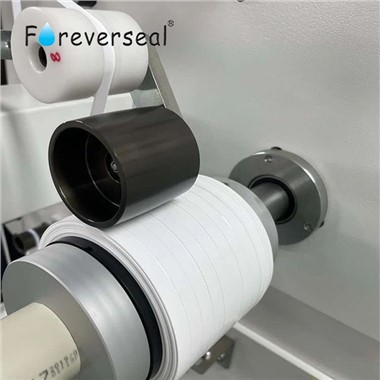

Slitting thiab ntim:
Slitting dav ntawm 4mm mus rau 200mm, lub winding yob siab tshaj plaws OD 300mm, cov yas cores ID 76mm nrog lub tiaj tiaj tiaj thiab cov kauj ruam pob / cov ntaub qhwv.
Khaws cov lus pom zoo rau cov ntaub nplaum uas tsis muaj sintered
Rau lub neej txee siab tshaj plaws, nws raug pom zoo tias PTFE cov yeeb yaj kiab tau muab khaws cia rau hauv qhov chaw huv, tswj qhov kub thiab txias ntawm lossis qis dua 21C nrog cov av noo qis dua 50 feem pua.
FAQ:
Cov neeg siv khoom: Koj cov nqe lus them nqi yog dab tsi?
Kev Them Nyiaj: T / T lossis L / C thaum pom
Cov neeg siv khoom: Dab tsi xim ptfe zaj duab xis koj tuaj yeem ua tau?
Foreverseal: Feem ntau nws yog dawb, thiab peb tuaj yeem ua kom muaj xim zoo nkauj yog tias muaj ntau ntau.
Cov neeg siv khoom: Puas yog koj cov yeeb yaj kiab ptfe puas muaj tshuaj lom?
Foreverseal: Tsis yog, tsis yog
