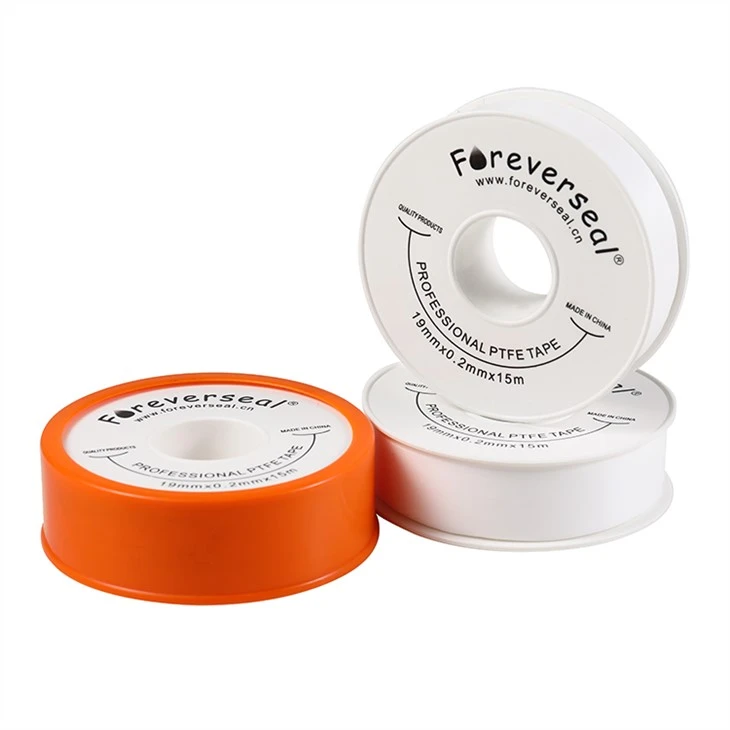

PTFE Thread Seal Daim kab xev
Loj: 19mmx0.2mmx18mx0.45g/cm3
Spool OD/ID: 86mm OD, 25mm ID
Spool / Cover xim: Dawb / Txiv kab ntxwv
Daim kab xev xim: Dawb
MOQ: 20000 pcs
Hauj lwm lawm
PTFE xov foob daim kab xev yog txoj hauv kev zoo tshaj plaws los kaw cov yeeb nkab yas. Nws tuaj yeem siv tau ntau txoj hauv kev, feem ntau ntawm cov uas yog kaw cov yeeb nkab yas threads. Nyob rau hauv kev siv, daim kab xev yog qhwv ib ncig ntawm cov xov xov ntawm ib tug yeeb nkab ua ntej nws yog screwed rau hauv qhov chaw. Cov kab xev feem ntau yog siv hauv kev lag luam hauv cov tshuab dej siab, xws li cov tshuab cua sov hauv nruab nrab, nrog rau hauv cov cuab yeej cua compression thiab xov cov pob qij txha nrog cov xov coarse. Ib qho ntawm cov yam ntxwv ntawm PTFE yog qhov zoo npaum li cas ntawm kev sib txhuam kev sib txhuam. Kev siv PTFE daim kab xev nyob rau hauv tapered yeeb nkab threads ua ib tug lubricating muaj nuj nqi, uas yooj yim dua tso cai rau cov threads yuav tsum screwed ua ke, mus rau lub point ntawm deformation, uas yog dab tsi tsim lub foob.
- Specifications
|
Dav |
19mm (3/4 ") |
|
Thickness |
0.2 hli |
|
Ntev |
18m |
|
Qhov ntom |
0.45g/cm3 |
|
Daim kab xev xim |
Dawb |
|
Spool |
86mm OD, 25mm ID |
|
Ntim |
Kev xaiv A: 10pcs / ntsws, 100pcs / kem, 500pcs / ctn Kev xaiv B: 10pcs / ntsws, 100pcs / kem, 200pcs / ctn Kev xaiv C: 10pcs / box, 250pcs / ctn (Cov nqi ntim A Lwm yam customized packing pub. |
|
MOQ |
20000 pcs |
|
Lub sij hawm xa tuaj |
30-40 hnub tom qab tau txais koj cov nyiaj them ua ntej |
- Technical Data:
|
Kev sib xyaw |
100% nkauj xwb PTFE |
|
Kev ntsuas siab |
mus txog 3, 000PSI |
|
Temp.Range |
-190C rau ntxiv 260C |
|
Tensile zog |
8 N / mm2 |
|
Elongation |
Min 25 feem pua |
|
Cia |
Unlimited txee lub neej (tsawg dua 70F) / 50 feem pua cov txheeb ze av noo tawm ntawm lub hnub ncaj qha |
|
Flammability |
Tsis-flammable |
- Peb daim ntawv pov thawj
- Peb cov khoom VS Lwm tus
- Khoom siv
- Ntim txoj kev
- FAQS:
Cov neeg siv khoom: Koj puas muaj Rohs rau daim kab xev ptfe?
Foreverseal: Yog, peb muaj
Cov neeg siv khoom: Qhov twg yog Hangzhou Forever Plastics Co., Ltd
Foreverseal: peb nyob hauv LINAN, HANGZHOU, ZHEJIANG, Suav teb (Nws siv sijhawm 1.5 teev los ntawm tsheb los ntawm tshav dav hlau Hangzhou lossis Hangzhou railway chaw nres tsheb rau peb lub Hoobkas)
Cov neeg siv khoom: Nws yuav siv sijhawm ntev npaum li cas los ua tus qauv?
Foreverseal: Nws siv sijhawm li 7 hnub los npaj cov qauv
